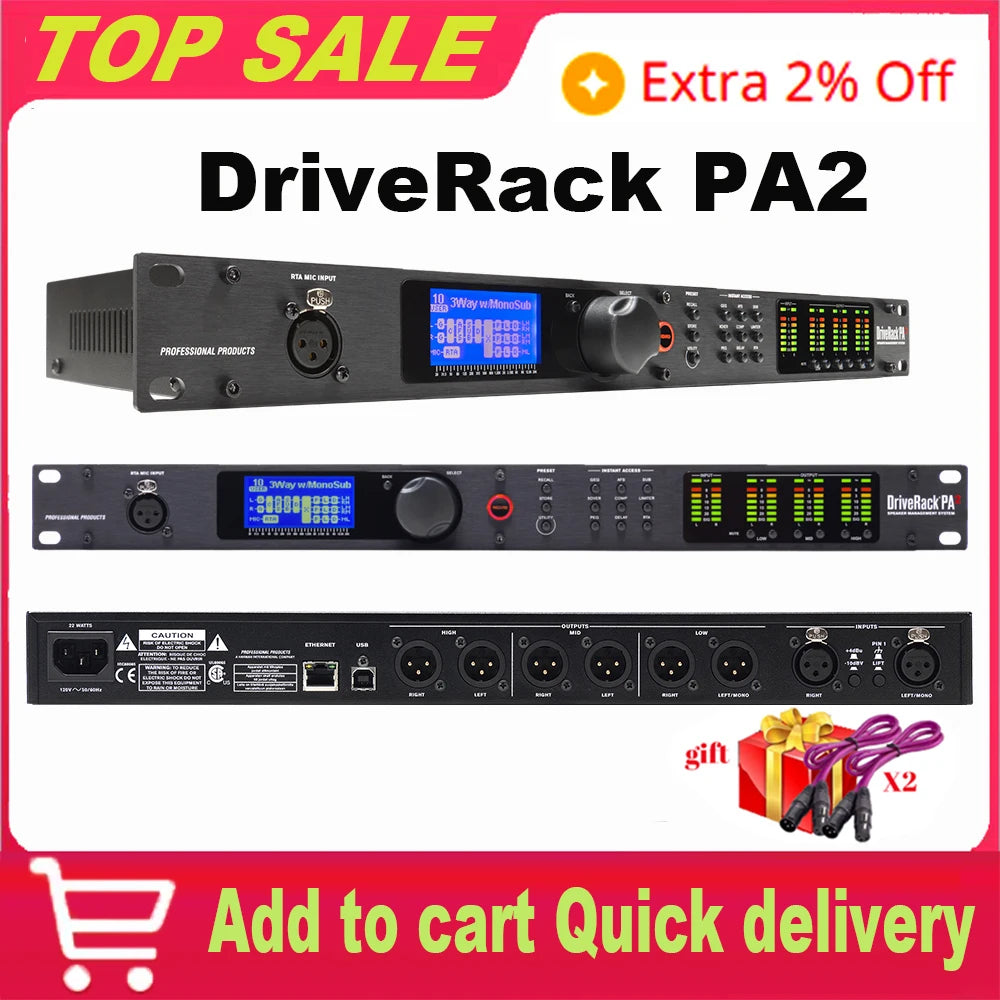

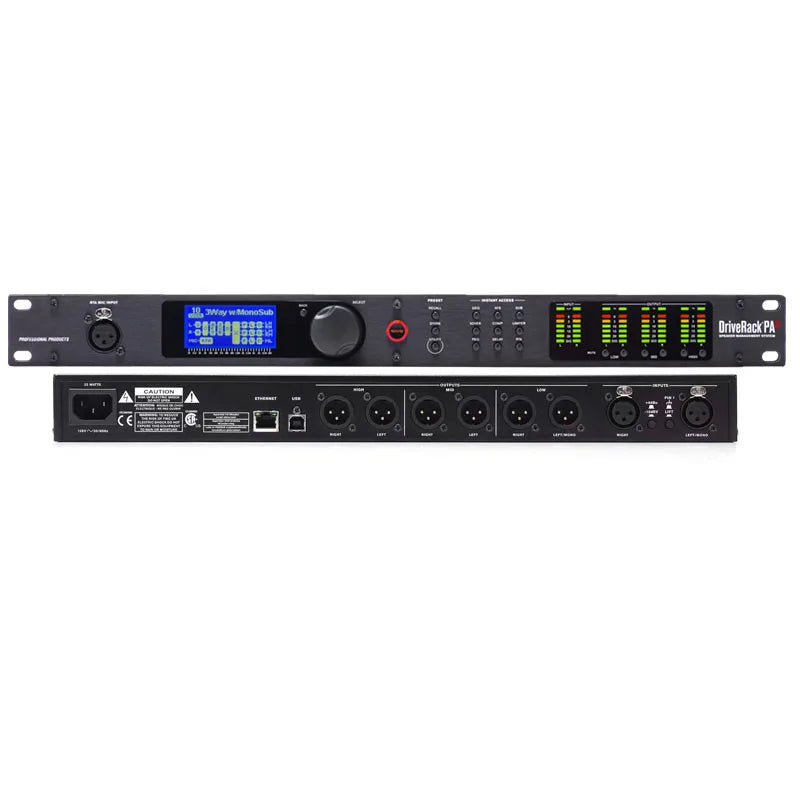

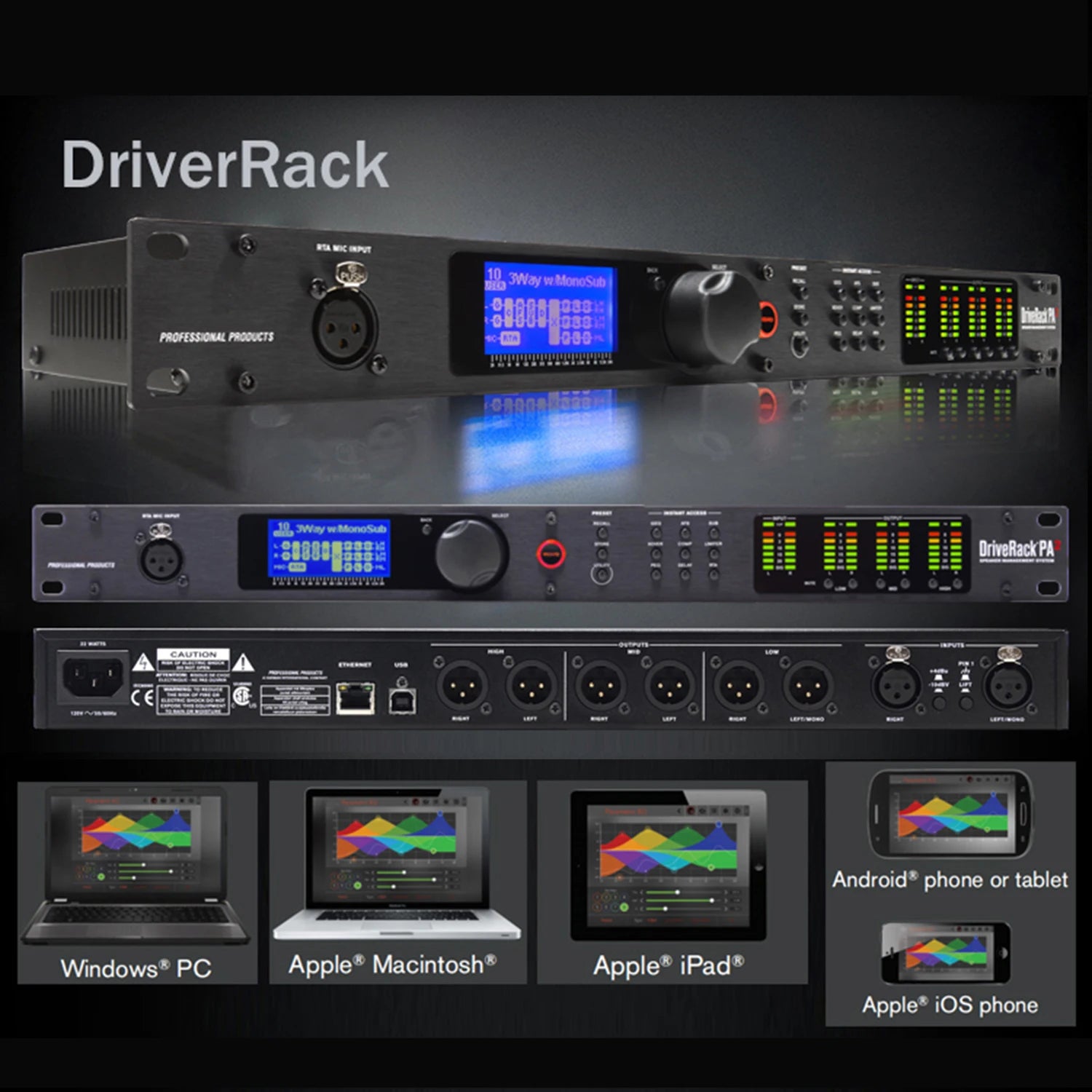

The PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers.Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the PA2 continues great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

Packing List:
audio processor x1
Using Manuel x 1
Power cable x1

Analog input:
Number of inputs: 2 inputs, 1 RTA microphone input
Connector: 2 x XLR bus input, 1 x XLR female RTA microphone input
Microphone input: electronic balance / RF filter / circuit input level: >50k
Maximum input level (line input): >+ 20 dBu
Common mode rejection ratio: >45dB
Phantom power supply for microphone preamplifier: + 15 VDC

Analog output:
Number of outputs: 6-wire output
Connector: XLR male plug
Tpe: Electronic balance, RF filter
Maximum output level: + 20 dB
Quasi-delay: Up to 10 milliseconds per output channel

A/D performance:
A/D dynamic range: 24-bit +112dB -110dB with A/D converter with IVTM conversion system
Type IV dynamic range: +123 db with transient materials, +22khz, 121 decibels (no weighted materials), 22khz 115 db standard configuration, program materials, +22khz
D/A converter: 24 bits
Dynamic range: +112db -110db

System performance
Internal processing word length: 32-bit floating point
Sampling rate: 48 khz
Dynamic range: +110 db -107 db
THD+ noise: typical value is 0.003% + 4 dbu, 1 khz, 0 db
Gain frequency response: Crosstalk between signal channels: 20 hz-20 khz, + 0 /- 0. 5 db
Delay: Input and output: 1.847 milliseconds, <- 110 decibels, -120 decibels (input and output: -100 decibels)

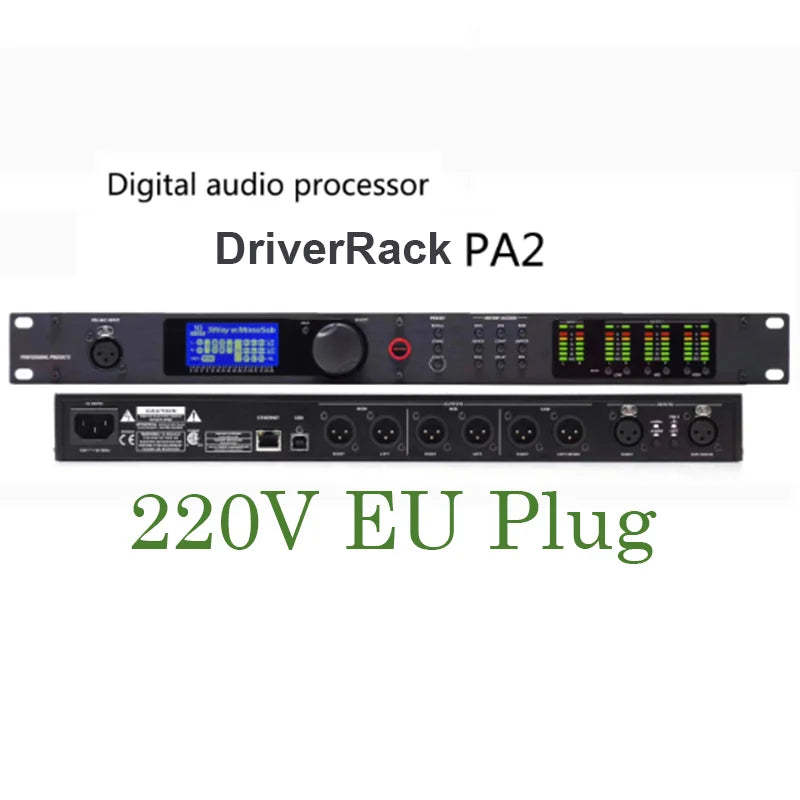

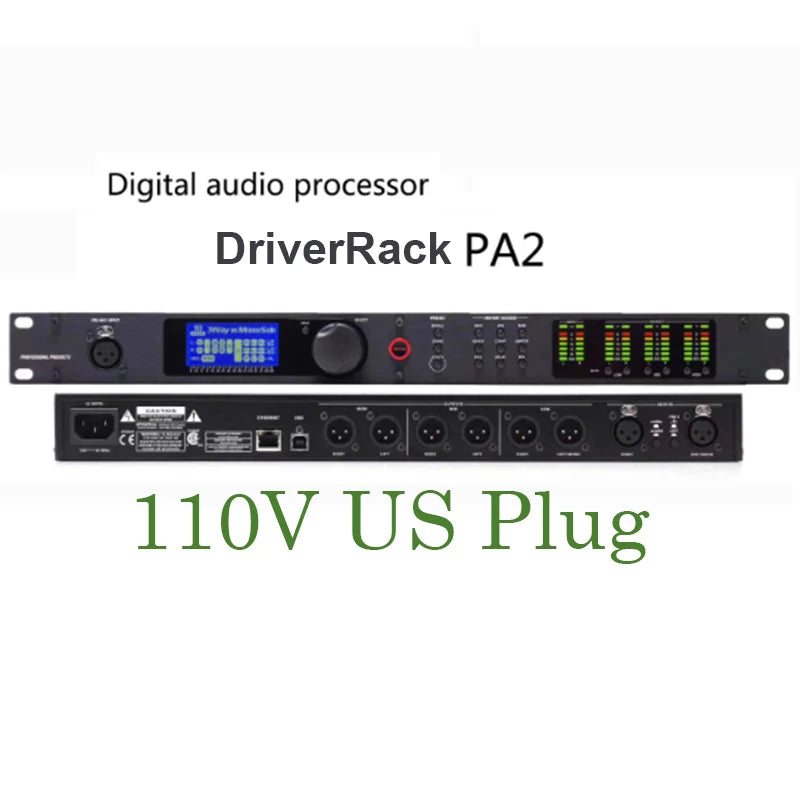

Power supplyWorking voltage: 100-120V 50/60 Hz or 220-240V AC 50/60 Hz Power consumption: 22W
