Product Description:

12V Product Parameters：

Power：300-700W

Rated voltage：12V

Refrigeration capacity：1800W

Battery requirements：Above 100Ah

Rated current:50A

Refrigerant：R1234yf / R134a  ---450g（Not Include）

Maximum current：60A

External unit circulating air volume：2000 m³/h

24V Product Parameters：

power400-1200W

rated voltage24V

Refrigeration capacity: 2600W

Battery requirements: 100Ah

Rated current: 35A

refrigerant : R1234yf / R134a （Not Include）

Maximum current: 50A

External unit circulating air volume:2000 m³/h

Product Parameters:

Cooling Air Flow: 400 m³/h (235 CFM)

Air Outlet: 4

Electronic Fan Power:100W

Battery Requirements:Above 100Ah

Smart Modes: Powerful / ECO / Sleep / Fan-only

Applicable Area (Estimated Cooling Area):3m³

Noise:65db

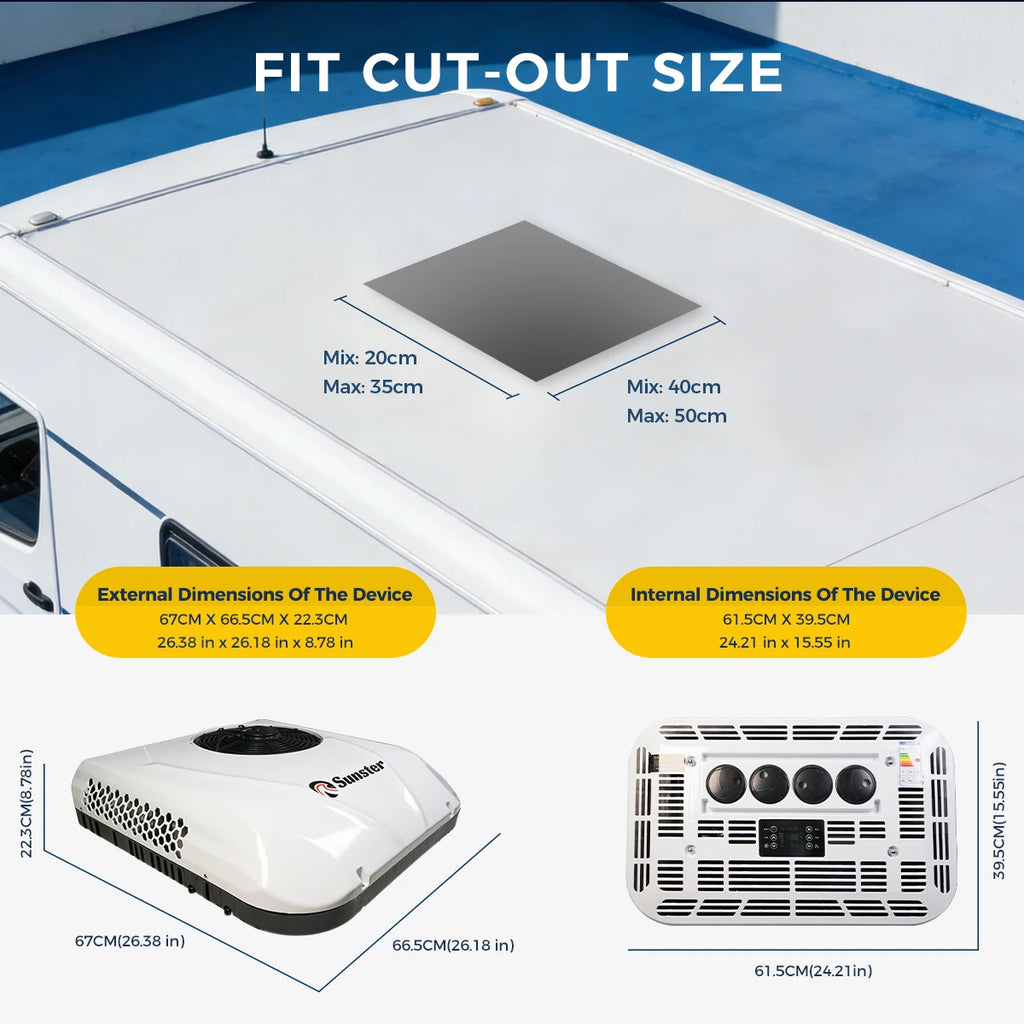

Installation size:

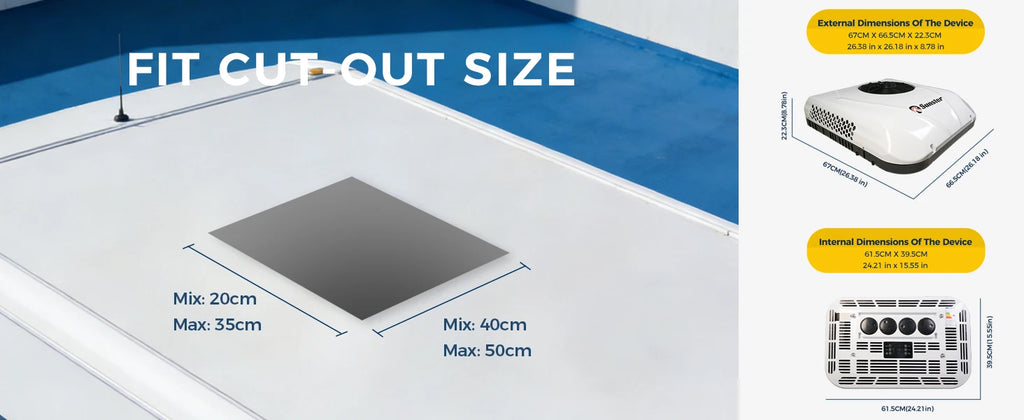

Roof Vent Installation Dimensions:Minimum installation size 20 ✖ 40 CM / Maximum installation size 35 ✖ 50 CM

External dimensions of the device:67CM X 66.5 X 22.3CM / 26.38 in x 26.18 in x 8.78 in

Internal dimensions of the device:61.5 X 39.5CM / 24.21 in x 15.55 in

Easy-to-install curb design that fits standard RV roof openings (check compatibility).

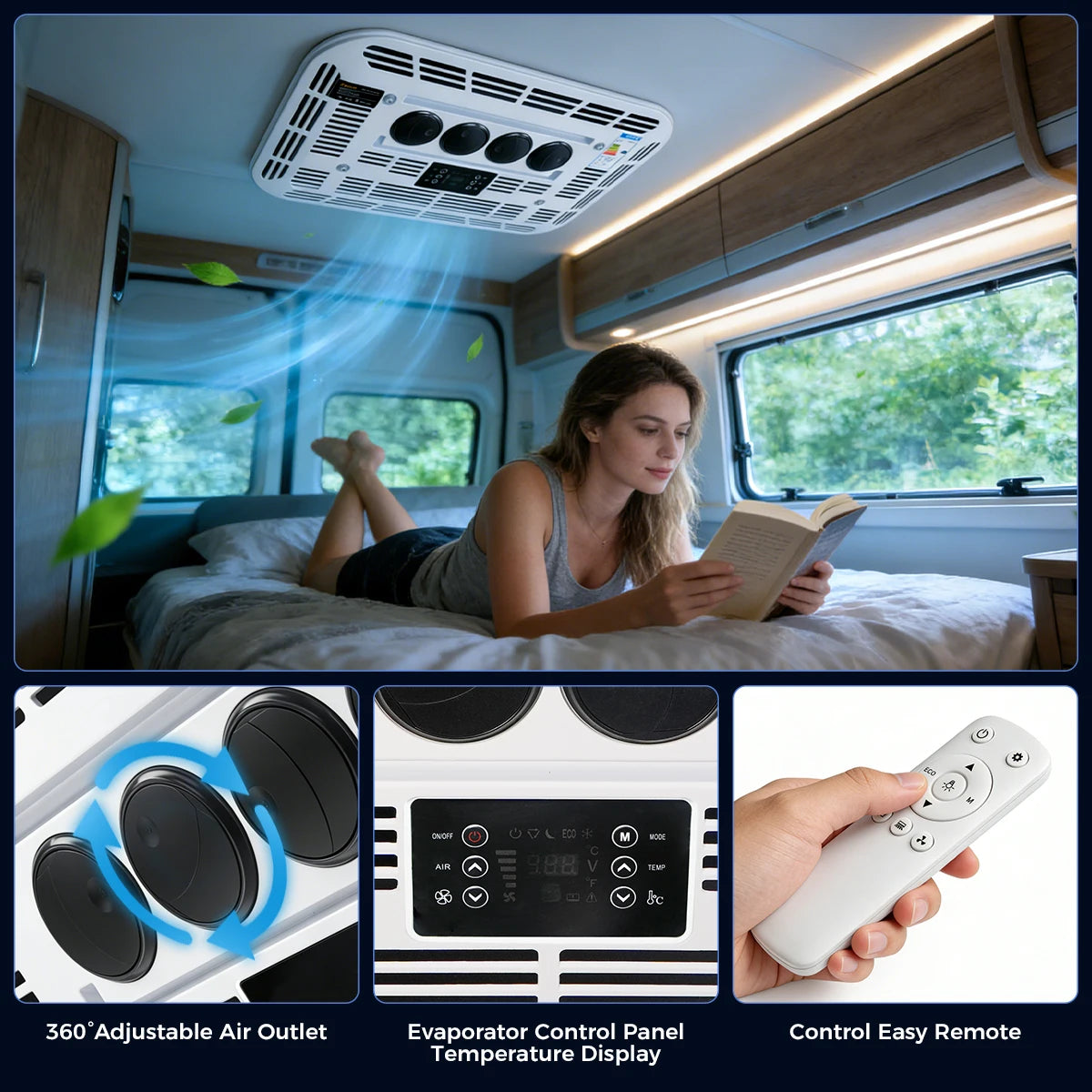

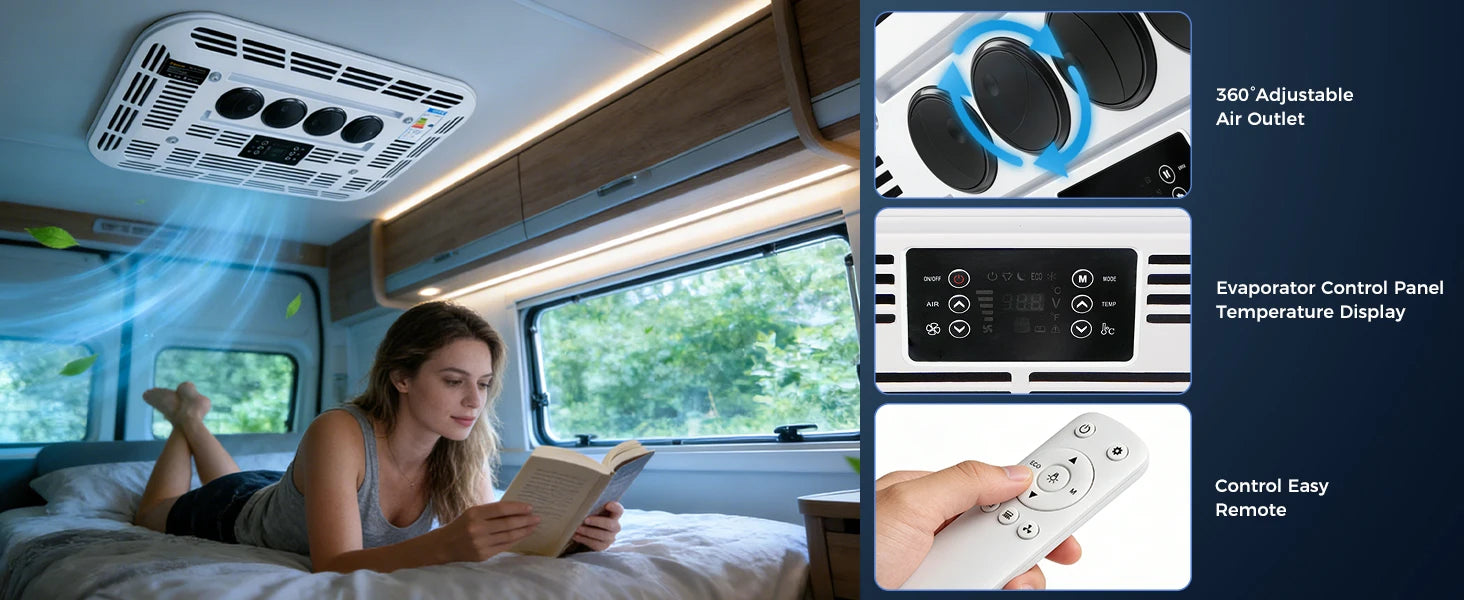

User-Friendly Control & Smart Features:

Wireless Remote Control: Easily adjust temperature, fan speed (Low/Med/High), and modes (Cooling/Ventilation) from anywhere inside your vehicle.

Digital Display Panel: Shows set temperature, ambient temperature, and operational status clearly.

Multiple Modes: Includes 4 working mode---Air supply mode，Power saving mode，Economic mode，Strong mode for optimized nighttime efficiency and comfort

Powerful & Efficient Cooling Performance:

Cooling capacity: 1800W (12V)/2600W (24V). Cools your vehicle in moments-feel over 10℃ cooler.

Inside airflow: 400m'/h (235 CFM), 4 vents for even cooling throughout the cabin.

Outside airflow: 2000m*/h, improves heat exchange & boosts cooling perfommance by 30%

Cools up to 4 m³ Great for compact RVs, small truck cabs, SUVs-stay cool, no stuffiness.

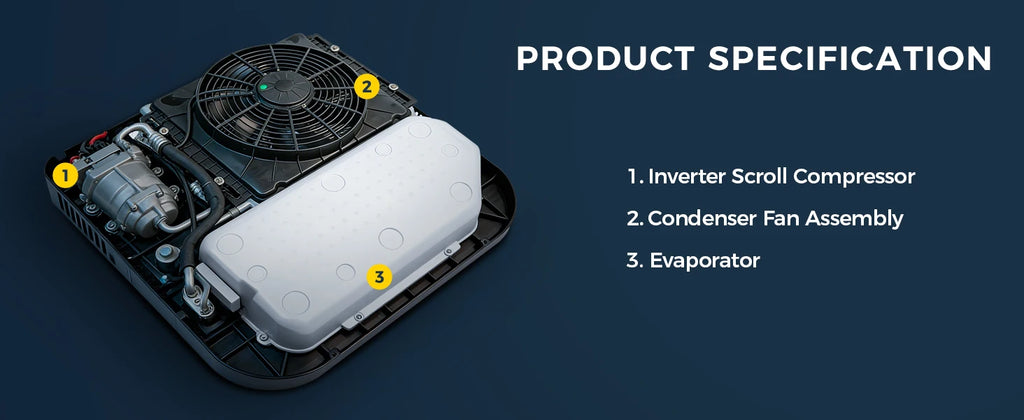

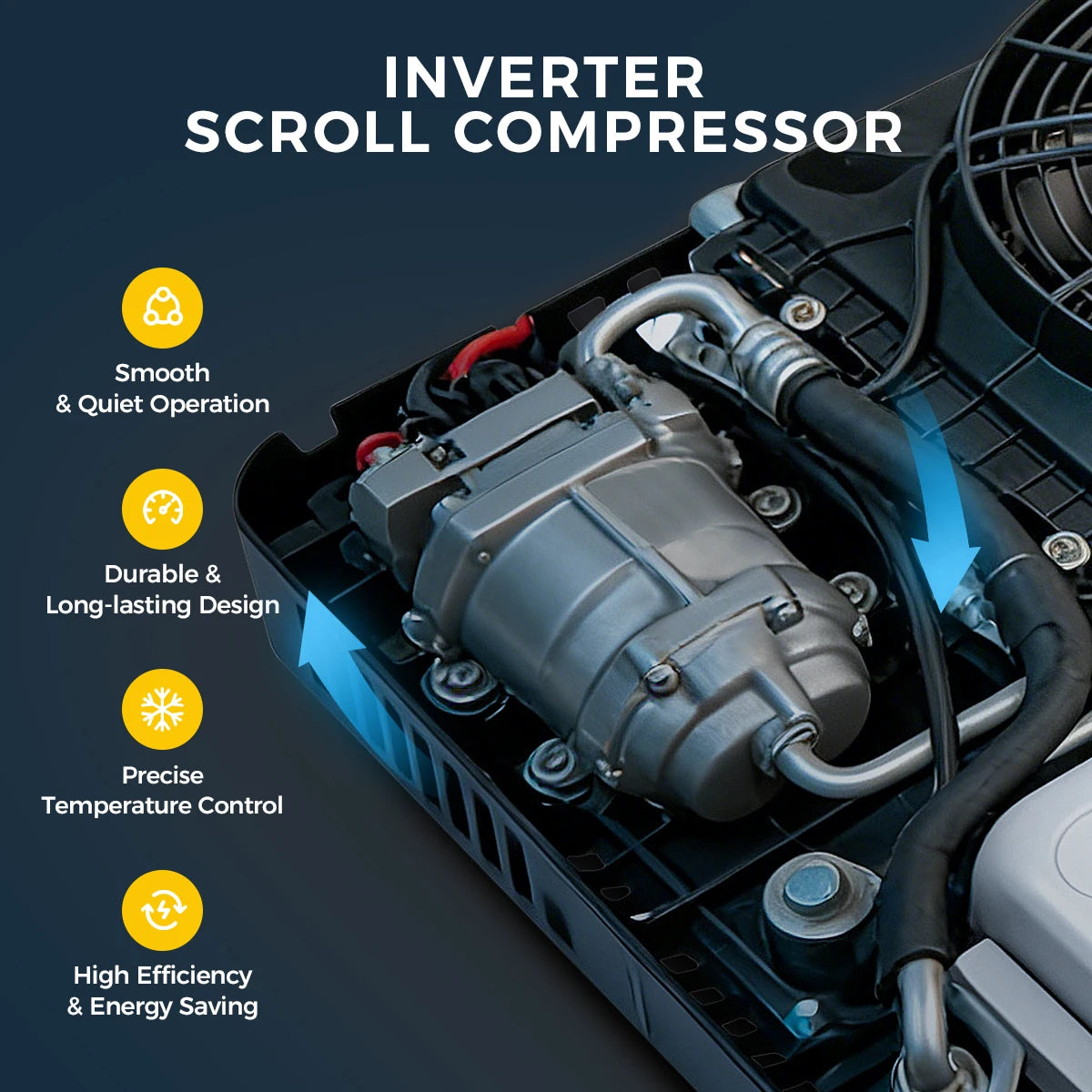

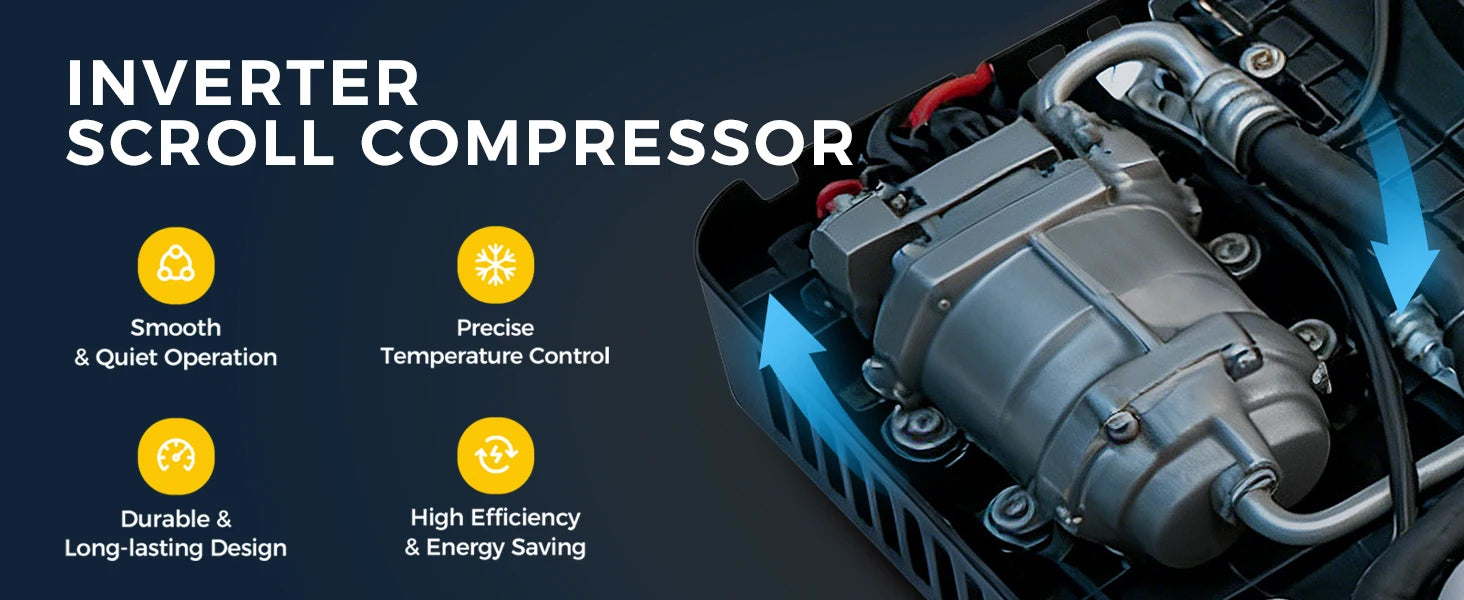

Inverter scroll comcompressor

Features a high-efficiency rotary compressor and a large cooling capacity (12V :6000BTU /24V:8500BTU) to quickly lower the temperature inside your vehicle, even on hot summer days.

Inverter scroll comcompressor--Intelligent inverter scroll compressor,more powerful and cooling faster.

Strong refrigeration---After stopping and extinguishing, it can continue to run for 8-12 hours to save energy and electricity, protect the environment, promote health, and sustain reshaping

Low voltage protection design: car electric RV rooftop air conditioner featuring a low-voltageprotection system, the air conditioning automatically cuts off power when the voltage is toolow, protect the battery and extend its service life

Low Noise Operation for Peaceful Living:

Specially designed fan blades and a vibration-dampened compressor enclosure significantly reduce operational noise. Noise level as low as 65dB.

Creates a tranquil indoor environment, perfect for sleeping, working, or relaxing.

Energy-Saving & Eco-Friendly:

Uses eco-friendly R1234yf/ R134a（ 450g）refrigerant.( not include)

High EER (O.3KWH/H EXPERTLY ENERGY-EFFICIENT) means more cooling power per watt of battery used, extending your off-grid capability.

Robust & Reliable Construction:

The outdoor shell is made of a mixture of nylon plastic and polycarbonate plastic. Stronger toughness, good rust resistance, and no fading

Highefficency Fan --360 degree full waterproofelectronic Fan.

Sealed design helps prevent dust and moisture ingress (rated IPX4 for water resistance).

High Quality Condenser --Special surface treatment,corrosion resistance,larger heat disssipation area,better refrigeration effect.

Applicable vehicles:

Van Lifers, Overlanders, RV Owners, Campervan Conversions, Truck Campers, and anyone who needs reliable, quiet, and efficient cooling while off-grid or parked.
